A Lot of Space for Many or

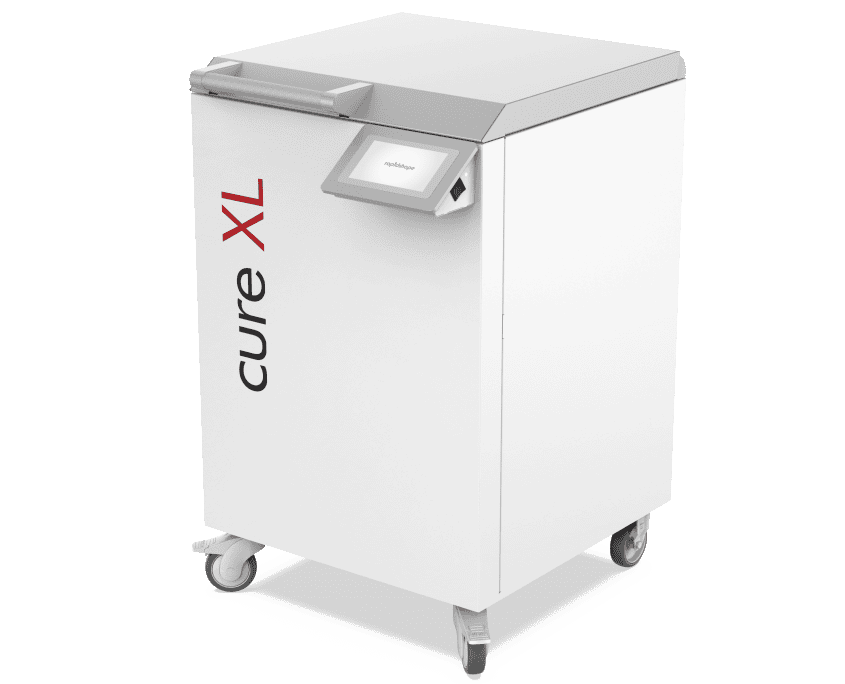

RS cure XL
The RS cure XL is based on the proven post-exposure device, the RS cure, with high-performance LEDs, but with an extra large volume. The device is optimal for post-curing of especially large or numerous printed components. Thanks to the proven 360° luminous exposure and the modern vacuum technology, short post-exposure times are achieved with high quality. The RS cure XL is the perfect supplement to Rapid Shape´s fully automated 3D printers. The use of vacuum means, no gas is consumed during use, which significantly reduces the operating costs compared to conventional devices. The investment will amortize – depending on use – in less than one year.
The large volume curing device for one or more x50+, x90+, x100+ 3D printers.
| Performance parameters | RS cure XL |
|---|---|
| Volume (W × H × D) | 470 x 375 x 280 mm |
| Curing time | approx 6–10 minutes (depending on material) |
| Technology | high-power LED, multiple wavelengths, with vacuum (optional supplemental protective gas) |
| Control | Touchscreen |
| Connections | WiFi/LAN |
| Power Supply | 110V/60Hz, 230V/50Hz, max. 1150W |
| Dimension (W × H × D) | 650 x 1050 x 800 mm |
| Weight | ~ 150 kg |
Features
The strong vacuum curing chamber of the cure XL ensures that oxygen inhibition is avoided during the curing of the print jobs. This enables reliable post-processing of your printed parts. UV-A, as well as UV-B radiation, enables curing large-volume printed parts homogenously from all sides in 6-10 minutes. Combined with Intelligent Connectivity with Rapid Shape’s 3D printers, the RS cure XL is perfect for efficiently integrating into an existing Rapid Shape 3D printing environment.
Wireless Connectivity to Printer
Validated Process
Extra Large Volume
Works with Vacuum
Care Plan for your RS cure XL
Keep your RS cure XL at peak performance with our tailored CARE Plan. Enjoy:
Proactive Maintenance
Priority Support
Smart Monitoring
Have a Look at Our Post Processing Units
All the Information You Need – At a Glance
Download the RS cure XL datasheet with all important facts.
