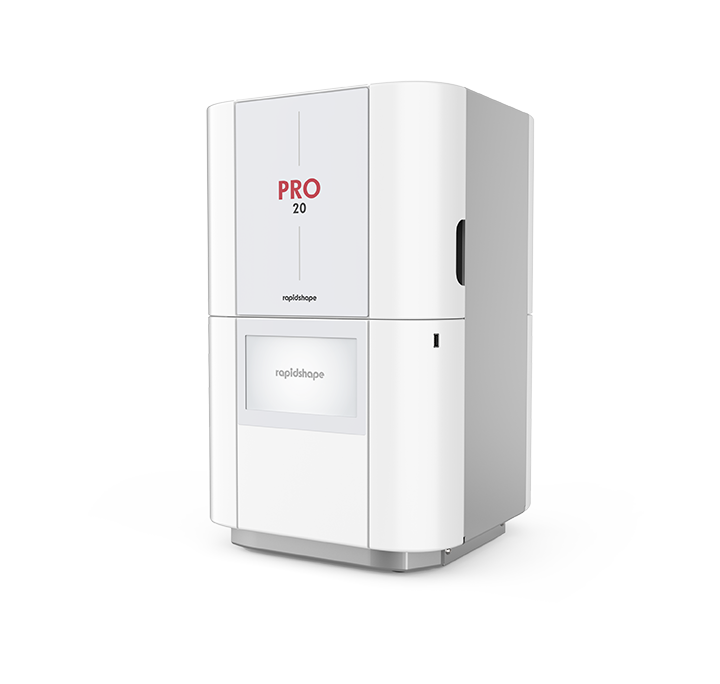

PRO 20
Bring your design to life: Our compact and practical PRO 20 easily converts your jewellery design into printed parts. Quick printing results make the PRO 20 an indispensable tool when carrying out rapid prototyping.
The PRO 20 combines maximum precision with maximum reliability.
WASH and CURE
Clean and cure your parts directly after printing with the WASH and CURE postprocessing units for an optimal and validated end result.
| Performance Parameters | PRO 20 | S30+ |
|---|---|---|
| Technology | Digital Light Processing (DLP) | Digital Light Processing (DLP) |
| Build volume (W x D x H) | 133 x 75 x 115 mm 5.2 x 3 x 4.5 inches | 133 x 75 x 155 mm 5.2 x 2.9 x 6.1 inches 151 x 75 x 70 mm (ASM active) |
| Native Pixel | +/ – 34 µm | + / – 34µm |
| Wavelength | 385nm | 385nm |
| Resolution | Full HD | Full HD |
| Device Dimension (W x D x H) | 334 x 357 x 544 mm 13 x 14 x 21.4 inches | 480 x 410 x 690 mm 19 x 16 x 27 inches |
| Connections | Ethernet, WLAN, USB | Ethernet, WLAN, USB |
| Control | 7″ touchscreen | 10″ touchscreen |
| Device Weight | ~ 27 kg ~ 59 lbs. | ~ 40 kg ~ 88 lbs. |
Features
The user friendly 3D printer for manufacturing your high quality jewelry parts.
Remote control and our open material system provide you more flexibility in the manufacturing process. The material identification function (RFID) allows you to easily access to material information of validated materials via a sensor and thus ensures faster preparation of your printing process.
Printing with consistently high print quality and the realization of thinner support structures is made possible by our integrated and patented force feedback technology. It measures the forces acting on the part for improving efficiency of your workflow. To get the best results for your printing parts, you can choose between regular and large building platform sizes.
Regular or Large Version
User Friendly
Open System
Small Space Requirement
Care Plan Included – Your First Year Is Free!
Every new PRO 20 comes with a complimentary 1-year CARE Plan, designed to keep your 3D printer at peak performance. Enjoy:
Proactive Maintenance: Annual remote validation & software updates
Priority Support:Fast response times and expert help when needed
Smart Monitoring: Live device view and resin consumption tracking
Our Product Line for Making High Quality Jewelry Parts
All the Information You Need – At a Glance
Download our jewelry brochure with all facts about the current portfolio
