The Workhorse for Professional 3D Printing Production

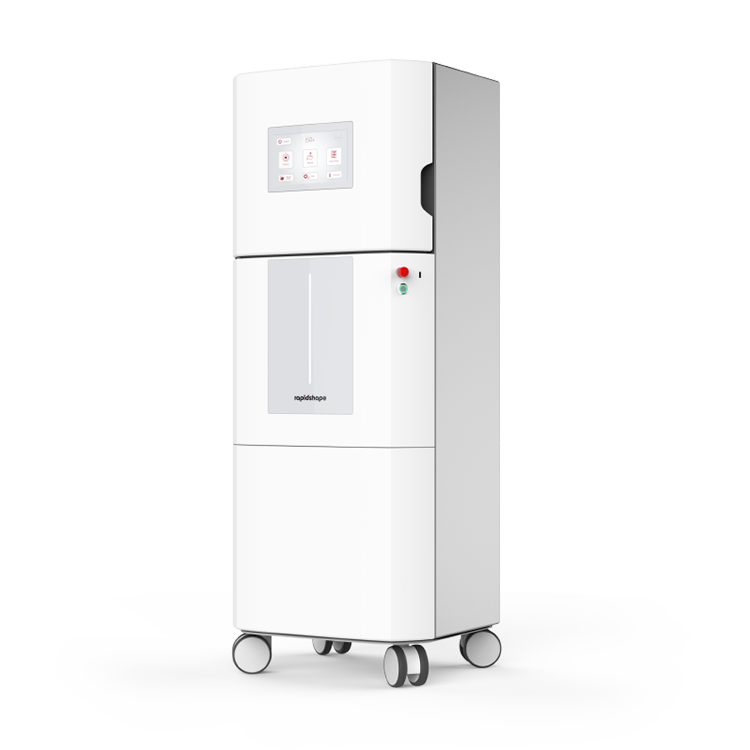

I50+

The I50+ is our new workhorse for printing every kind of usecase. By having a printing area that is triple the size of the one of the I30+ and with the optional patented Automatic Separation Module, you will give your daily production output a real boost up to the maximum. Your printed parts will be removed from the building platform right after being finished and all finished units will be collected in a collection basket. The upcoming printing job will start immediately, without any manual intervention.

An Automatic Resin Refill unit takes care of a constantly sufficient filling Level of Resin material inside the Reservoir.

Performance parameters	I50+	I100+
Build Volume (L x W x H)	231 x 130 x 300 mm 231 x 130 x 100 mm (ASM active)	338 x 190 x 400 mm
Native pixel	+ / – 30µm	+ / – 44µm
Wavelength	385 nm	385 nm
Temparature	Regulated up to 35° C	Regulated up to 35°C
Resolution	4K	4K
Dimensions (W x D x H)	600 x 570 x 1660 mm	575 x 498 x 2160 mm
Connectivity	Ethernet, WLAN, USB	Ethernet, TCP/ IP, USB
Control units	10″ touchscreen	10″ touchscreen

Features

The I50+ is a highly productive standalone 3D printer that is the perfect entry point to prototyping and volume production.

The 3D printer offers a large print volume with a 4K projector and enables mass production with the automatic separation module. A foot sensor controls the automatic opening of the printer hood.

Our open material system allows you to use different resins for the print process. To avoid errors and mismatches, the material identification (RFID) helps you to track the workflow and guarantees compliance with medical regulations.
