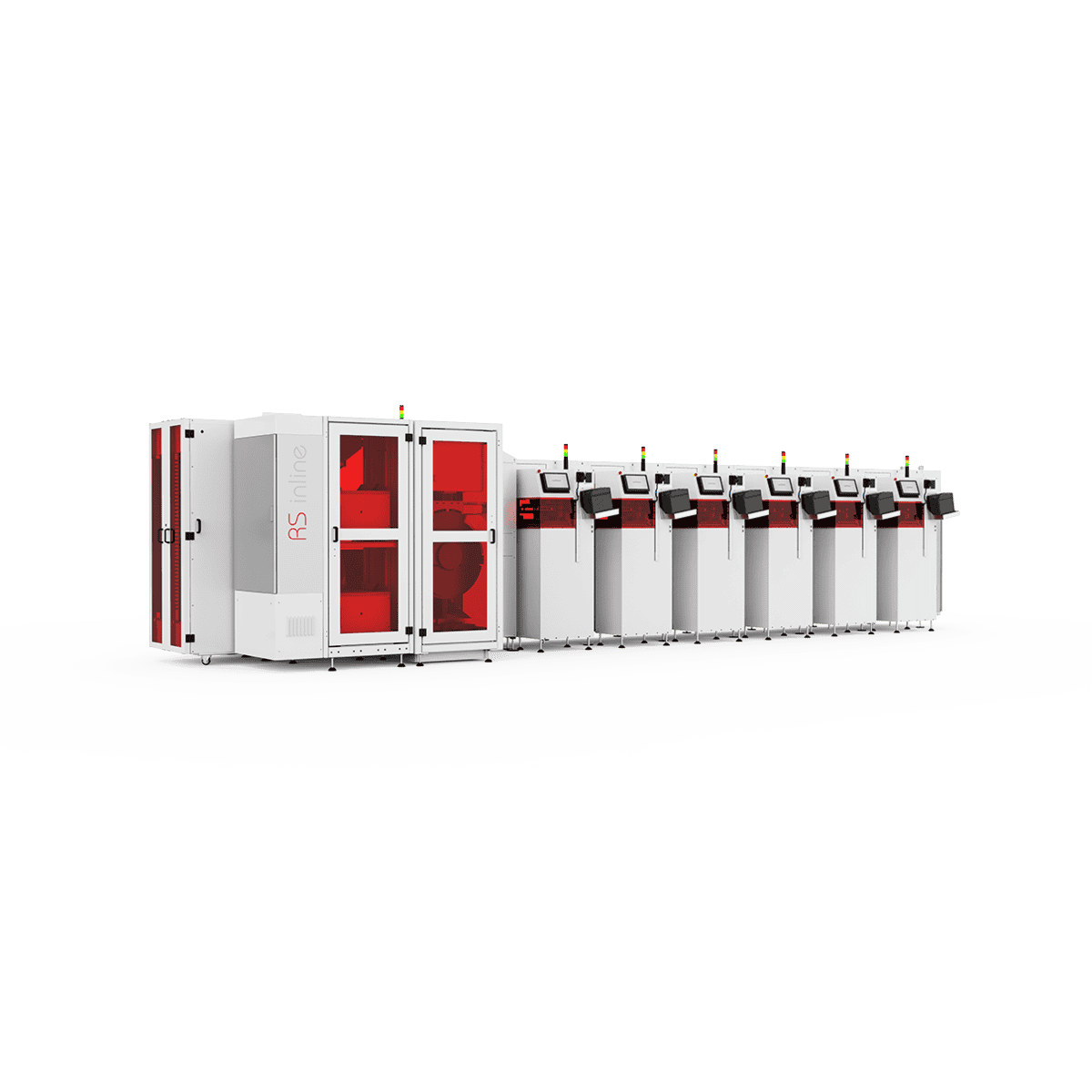

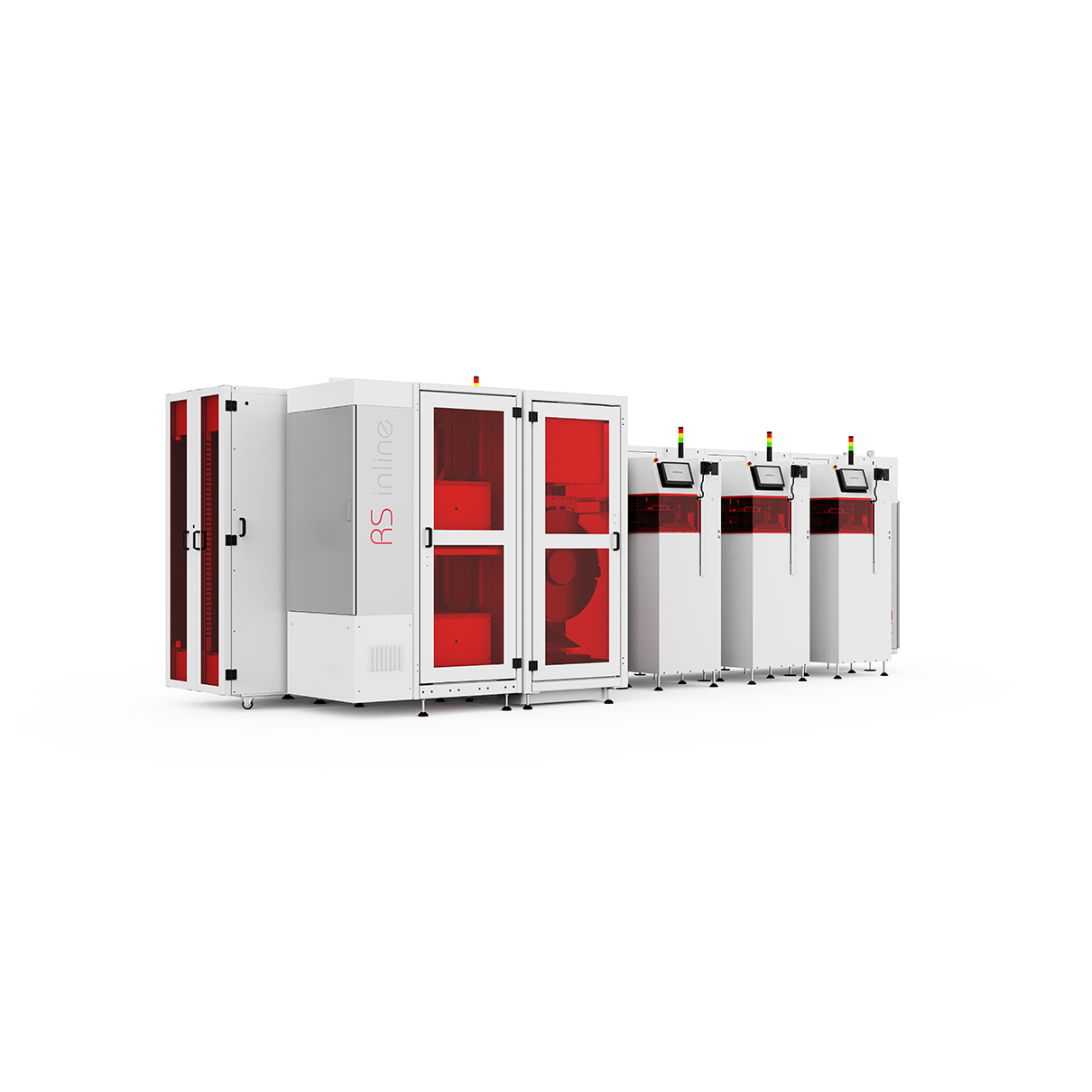

Our new RS Inline 3.0, the gamechanger in high-volume, fully automated 3D printing production — delivers aligner models, study models, trim line models, indirect bonding trays, and much more with unmatched efficiency and minimal manual labor. Scalable from 3 to max. 6 printers, this solution grows alongside your operations.

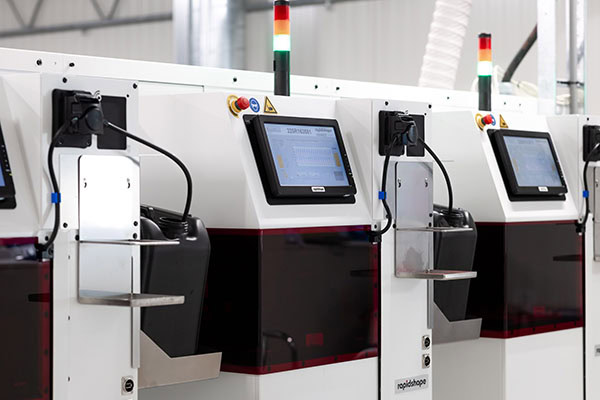

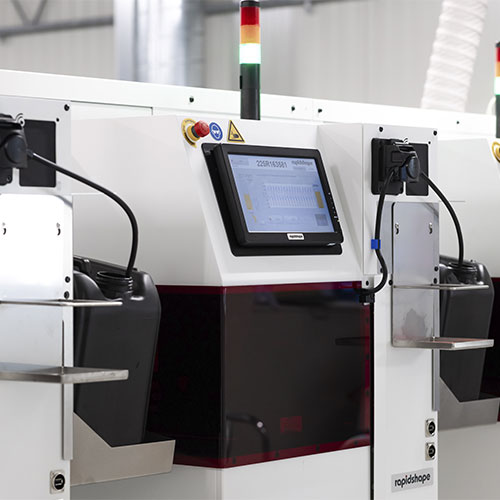

Rapid Shape D90+ and D100+ deliver true 24/7 automation with zero manual intervention. Equipped with Automatic Refill Systems, these printers continuously produce precision 3D prints. Just load your chosen resin into the refill station, queue up your jobs, and let the printer handle the rest.
Rapid Shape D90+ and D100+ deliver true 24/7 automation with zero manual intervention. Equipped with Automatic Refill Systems, these printers continuously produce precision 3D prints. Just load your chosen resin into the refill station, queue up your jobs, and let the printer handle the rest.

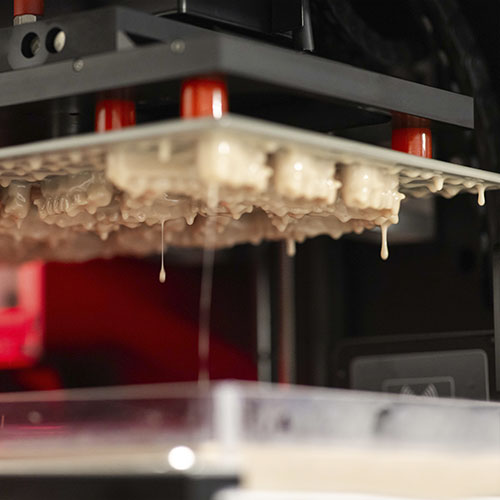

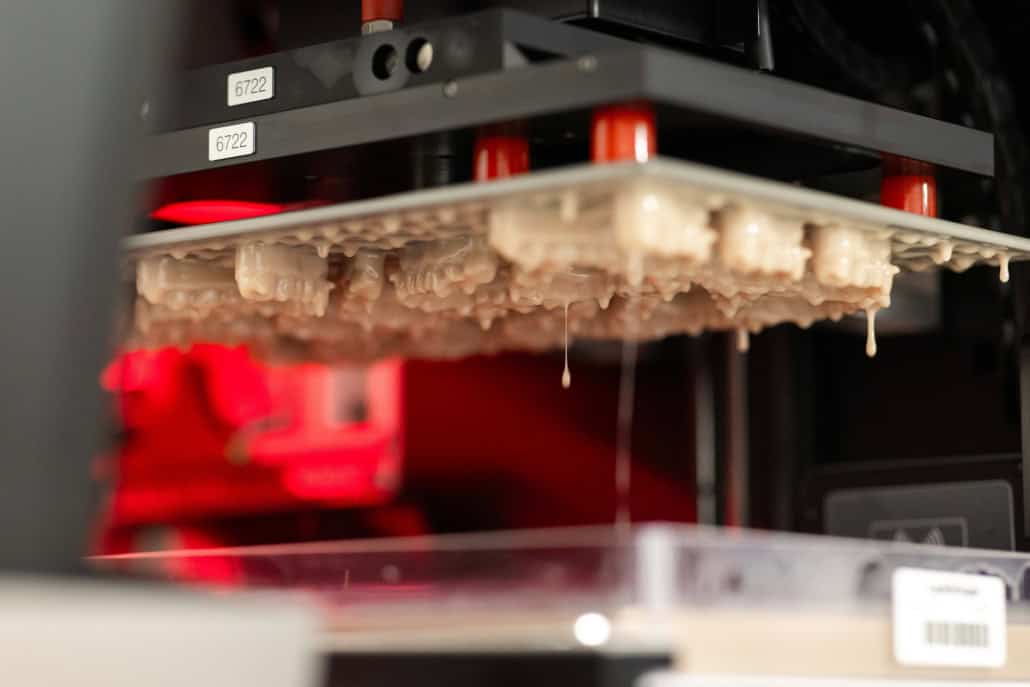

Each Rapid Shape printer features a load cell that measures the forces on each layer, ensuring successful prints and reducing wait times. By automatically adjusting the Z-axis movement, our printers save up to 20% of print time, making Rapid Shape one of the fastest DLP 3D printers on the market.
Each Rapid Shape printer features a load cell that measures the forces on each layer, ensuring successful prints and reducing wait times. By automatically adjusting the Z-axis movement, our printers save up to 20% of print time, making Rapid Shape one of the fastest DLP 3D printers on the market.
Each Rapid Shape printer features a load cell that measures the forces on each layer, ensuring successful prints and reducing wait times. By automatically adjusting the Z-axis movement, our printers save up to 20% of print time, making Rapid Shape one of the fastest DLP 3D printers on the market.
Each Rapid Shape printer features a load cell that measures the forces on each layer, ensuring successful prints and reducing wait times. By automatically adjusting the Z-axis movement, our printers save up to 20% of print time, making Rapid Shape one of the fastest DLP 3D printers on the market.
RS inline 3.0 is equipped with a built-in centrifuge, cleaning print jobs IPA-free. With 60-180 second cycle times and simultaneous excess resin collection, the centrifuge is highly efficient for high-volume operations.
Optionally available is additional or exclusive IPA cleaning of 3D printed parts, creating a truly future proof system.
The two built-in vacuum curing units ensure an even 360° light distribution for rapid, high-quality results.
The individually programmed robotic arms create dedicated handover station areas for specific applications, ensuring seamless customization until the final step. Maximize efficiency and performance in your high-volume production.
The individually programmed robotic arms create dedicated handover station areas for specific applications, ensuring seamless customization until the final step. Maximize efficiency and performance in your high-volume production.

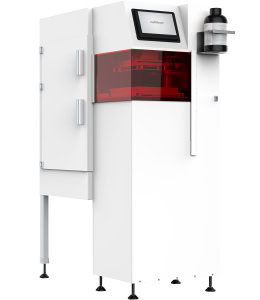

D90+ | HA90+ | D100+ | |
Technology | 405 nm DLP with Force Feedback | 405 nm DLP with Force Feedback | 405 nm DLP with Force Feedback |
Build Plate Size (W x D x H) | ~ 10 Aligner Models flat 232 x 137 x 100 mm 9 x 5.3 x 4 inches | ~ 60 molds 232 x 137 x 100 mm 9 x 5.3 x 4 inches | ~ 24 Aligner Models flat338 x 190 x 100 mm13 x 7.5 x 4 inches |
XY Accuracy | +/- 30 µm | +/- 30 µm | +/- 44 µm |
Available Print Layer Thickness | 50-150μm | 50-150μm | 50-150μm |
Touch Screen Size | 10 inch touch screen | 10 inch touch screen | 10 inch touch screen |
Connectitvity | WiFi, LAN, USB | WiFi, LAN, USB | WiFi, LAN, USB |
Device Dimension (W x D x H) | 650 x 1080 x 1860 mm 24.6 x 17.4 x 62.7 inches | 650 x 1080 x 1860 mm 24.6 x 17.4 x 62.7 inches | 625 x 443 x 1860 mm 24.6 x 17.4 x 62.7 inches |
prints up to 24 models per print job
Ideal for high-capacity non-biocompatible parts, such as aligner models
prints up to 10 models per print job
deal for dental applications requiring fine surface finish, incl. master models, splints, trays, mouthguards & more
Each day over 250,000 print jobs are completed at our partner’s production sites with the RS inline solutions across the world. Learn more about their experience with the Rapid Shape solution for full automation.
Liberty Dental Group produces up to 1000 orthodontic models per day, supplying orthodontist offices across Europe.
The RS Inline 3.0 has addressed a critical challenge in their production process. “By implementing the RS Inline 3.0 automated robotized production workflow, our customers rest assured that timely delivery of high-quality orthodontic appliances are being guaranteed,” said a Rik Jacobs, VP Digital Workflows at Liberty Dental Group.
Liberty Dental Group produces up to 1000 different kinds of orthodontic models per day, supplying orthodontist offices across Europe.
The RS Inline 3.0 has addressed a critical challenge in their production process. “By implementing the RS Inline 3.0 automated robotized production workflow, our customers rest assured that timely delivery of high-quality orthodontic appliances are being guaranteed,” said a Rik Jacobs, VP Digital Workflows at Liberty Dental Group.
Download our prospect with all facts about the new RS Inline 3.0
D100+ ortho
View Full Technical Specifications
