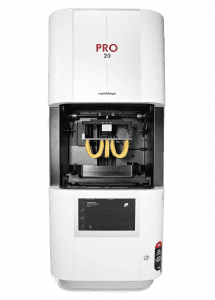

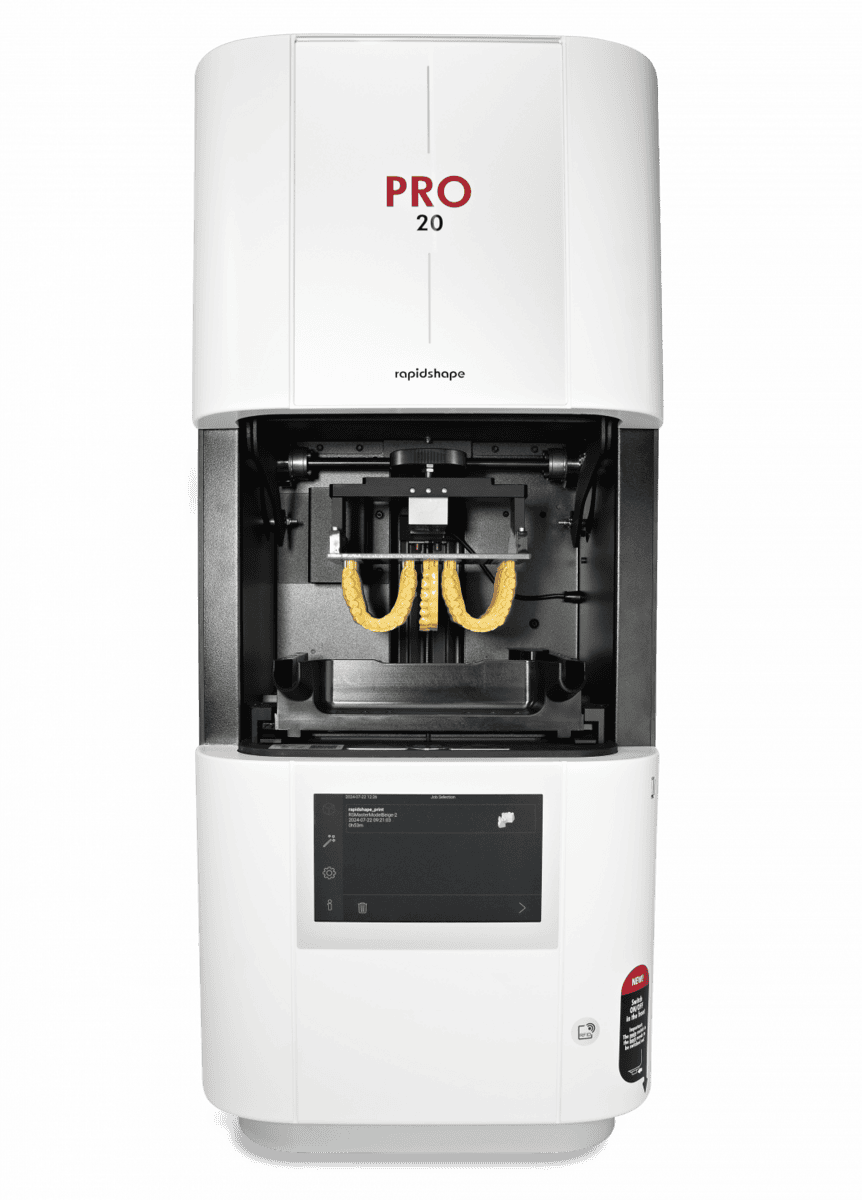

The Rapid Shape PRO 20 delivers unmatched print performance across 15+ dental workflows. Validated with over 200 dental resins, it offers maximum versatility while consistently achieving next-level precision for Crowns & Bridges, Splints, Master Models, and more, all with a standard 50-micron layer thickness at unbeatable printing speeds.
The Rapid Shape PRO 20 delivers unmatched print performance across 15+ dental workflows. Validated with over 200 dental resins, it offers maximum versatility while consistently achieving next-level precision for Crowns & Bridges, Splints, Master Models, and more, all with a standard 50-micron layer thickness at unbeatable printing speeds.
Turbo15 Minutes at 50μm layer thickness
RS Crystal PolishReduces more than 90% of polishing work
Smart connection from printer to wash to cure

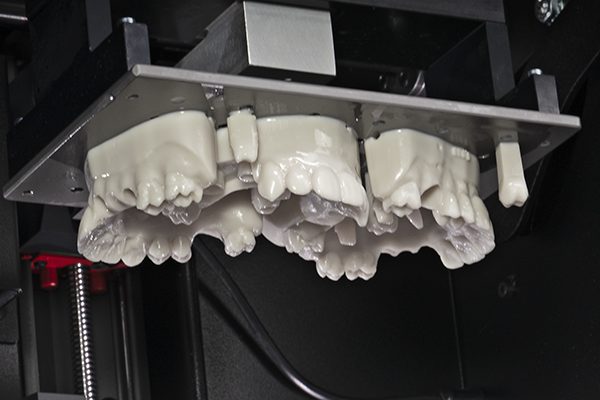

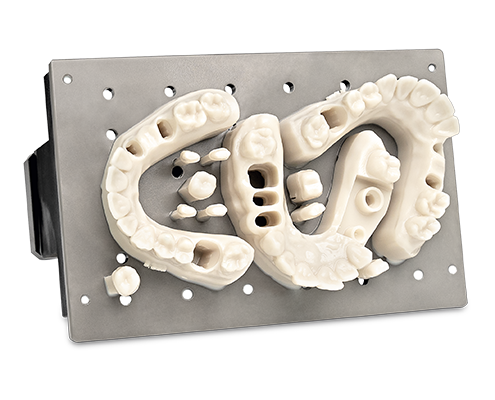

| Print Capacity: | 3 Models with Dies |
Print with  Turbo: | 15 Minutes |
| Standard Print Time: | 25 Minutes |
| Layer Thickness: | 50 µm |
| PRO wash – Wash Time: | 10 Minutes |
| PRO cure – Cure Time: | 10 Minutes |

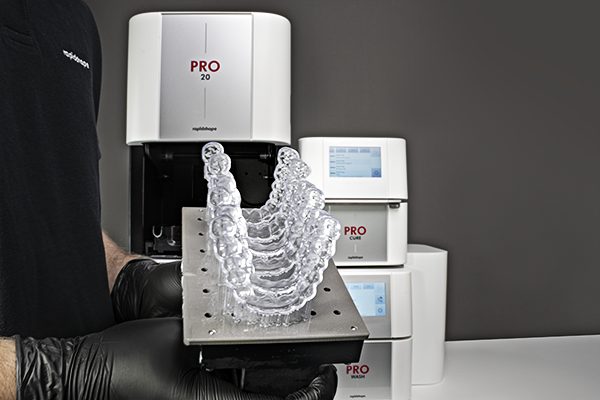

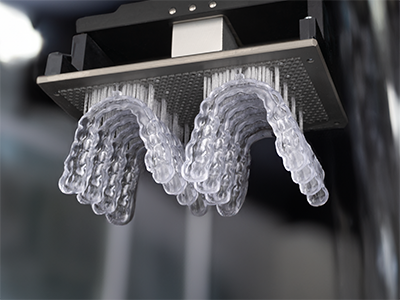

RS Crystal Polish Reservoir| Print Capacity: | 8 Occlusal Guards |
| Standard Print Time: | 90 Minutes |
| Layer Thickness: | 50µm |
| PRO wash – Wash Time: | 10 Minutes |
| PRO cure with Vacuum – Cure Time: | 10 Minutes |

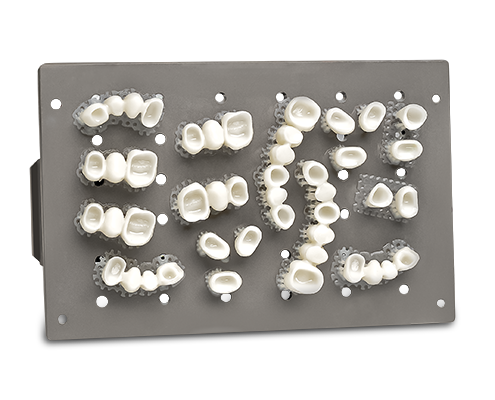

| Print Capacity: | up to 50 Single-unit Crowns |
| Standard Print Time: | 15 Minutes |
| Layer Thickness: | 50µm |
| PRO wash – Wash Time: | 10 Minutes |
| PRO cure – Cure Time: | 10 Minutes |

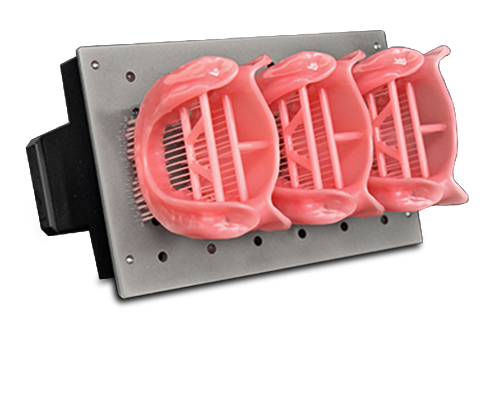

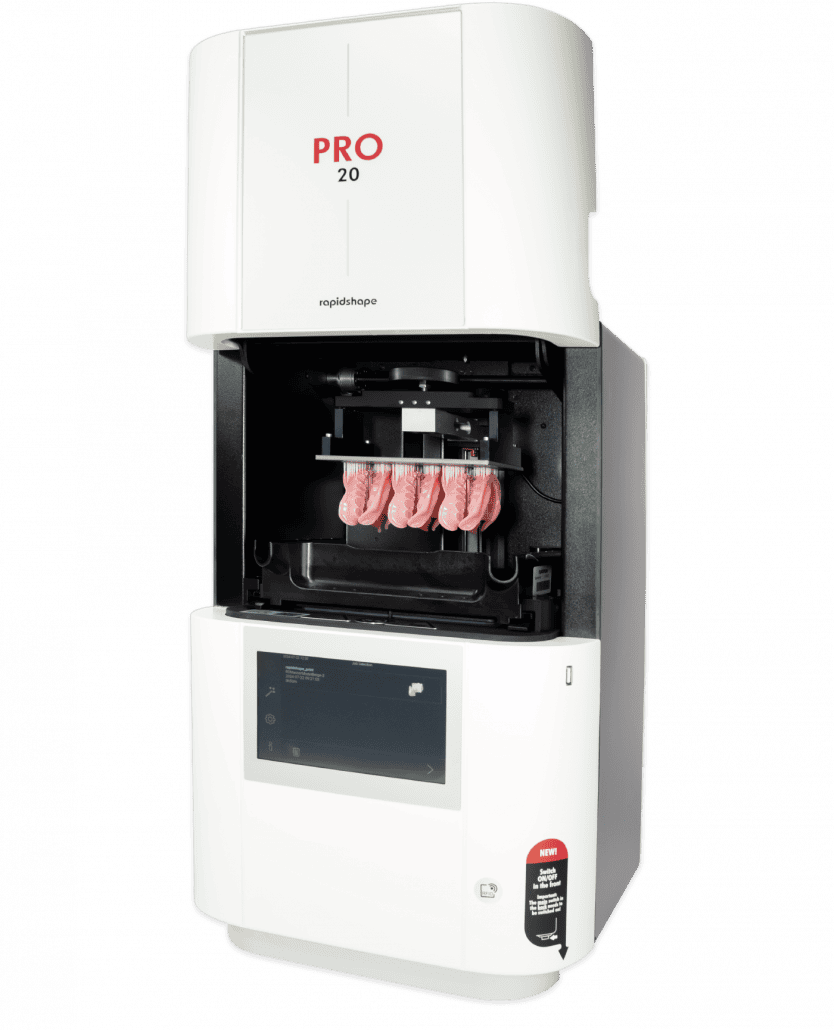

| Print Capacity: | up to 6 full arch denture bases |
| Standard Print Time: | 120 Minutes |
| Layer Thickness: | 100µm |
| PRO wash – Wash Time: | 10 Minutes |
| PRO cure – Cure Time: | 10 Minutes |
Every new PRO 20 comes with a complimentary 1-year CARE Plan, designed to keep your 3D printer at peak performance. Enjoy:
Proactive Maintenance: Annual remote validation & software updates
Priority Support: Fast response times and expert help when needed
Smart Monitoring: Live device view and resin consumption tracking
The PRO 20: Engineered for a Superior Dental 3D Printing Experience
We are consistently 20% faster than other DLP 3D printers, yet never compromise on precision.

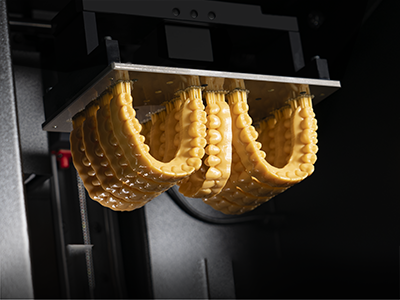

Each Rapid Shape printer features a load cell that measures the forces on each layer, ensuring successful prints and reducing wait times. By automatically adjusting the Z-axis movement, our printers save up to 20% of print time, making Rapid Shape one of the the fastest DLP 3D printers on the market.
TurboRapid Shape’s patented Force Feedback technology has consistently made our 3D printers the fastest DLP printers on the market. With the new RS Turbo feature, the PRO 20 is now officially the fastest dental 3D printer.
But speed isn’t enough—precision is crucial in dentistry.
That’s our commitment to excellence. Nothing less.

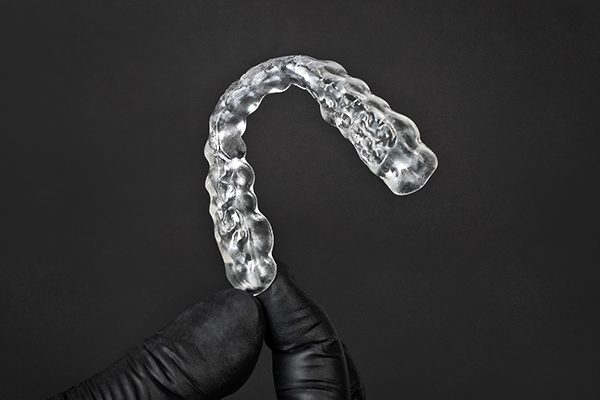

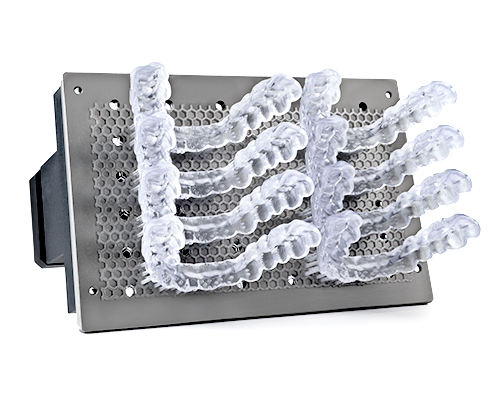

Let your 3D printer do the work – reduce polishing work by more than 90% with the RS Crystal Polish Reservoir. Achieve smooth, high-quality prints straight out of the printer, minimizing post-processing and deliver crystal clear 3D printed splints.

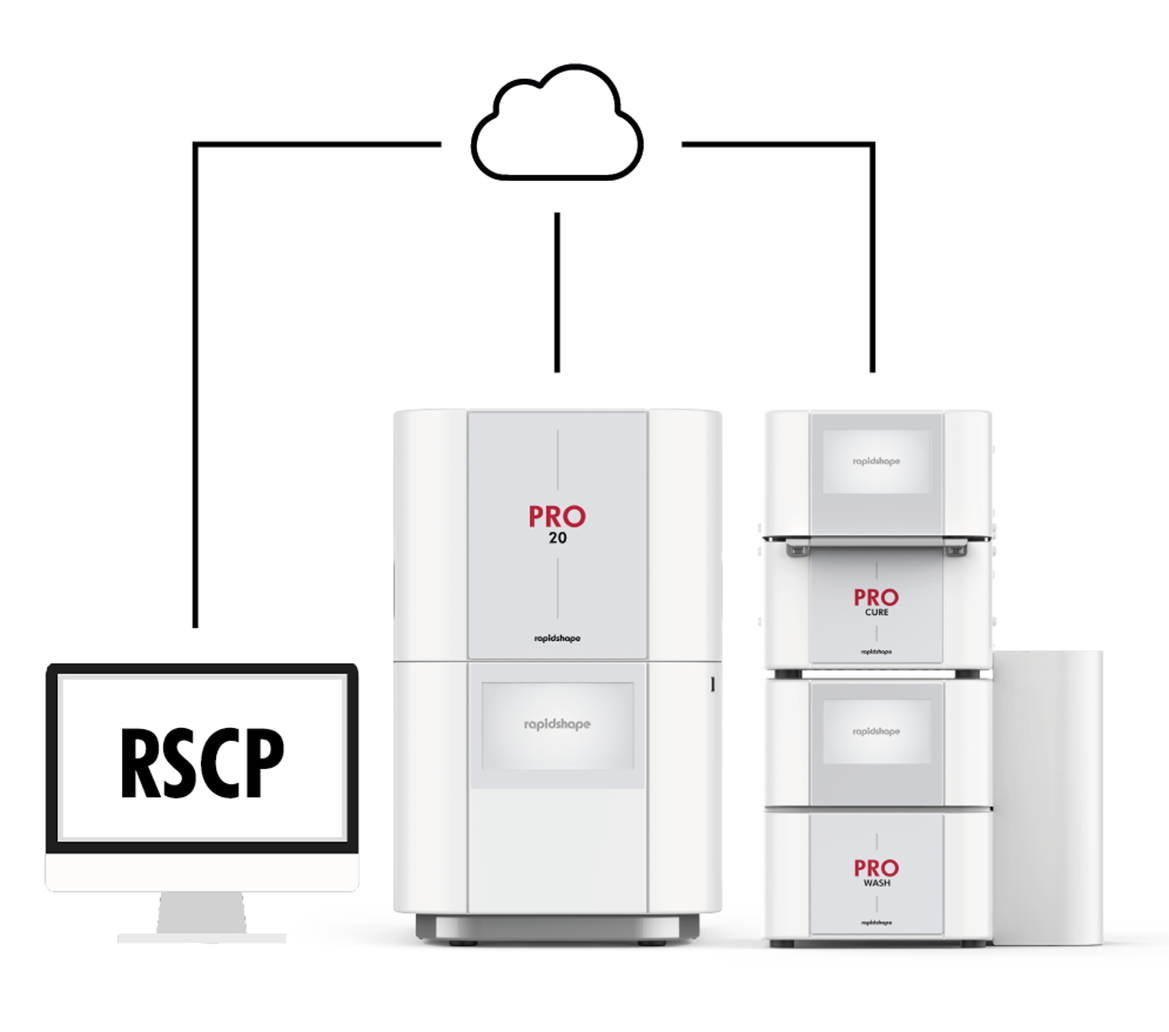

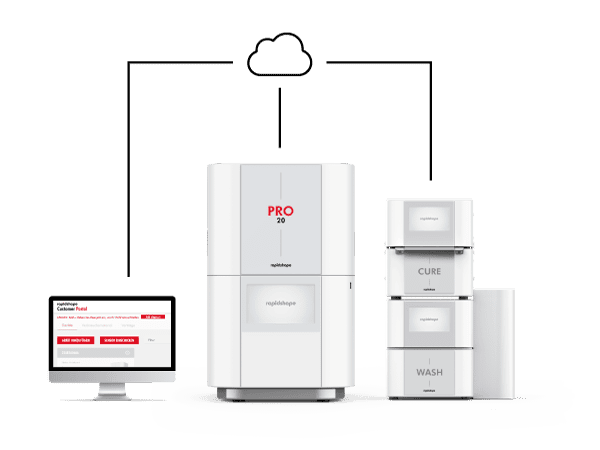

The Rapid Shape PRO 20 Solution makes delegation simple. The intelligent connectivity between printer, wash and cure ensures error-free transitions. Once registered with the Customer Portal, all users have access to view and manage all devices for easy collaboration in any dental office or lab.

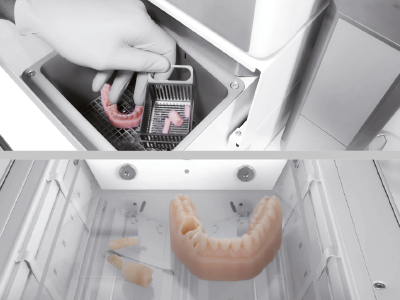

The Rapid Shape PRO wash and PRO cure offer top-tier versatility, ease of use, and quality. PRO wash and PRO cure offer 200+ pre-set parameters with one-click operation. PRO wash minimizes alcohol and resin exposure, drying parts for PRO cure’s vacuum chamber, which maximizes mechanical properties and biocompatibility. Experience superior 3D printing with the PRO 20 solution.
We’re committed to offering you the best materials in dental 3D printing.
Rapid Shape users receive quarterly software updates, giving you easy access to top materials with just 1 click.
| Technology | Digital Light Processing (DLP) with Force Feedback |
| Wavelength | 385nm |
| Build Plate Size (W x D x H) | 133 x 75 x 115 mm 5.2 x 3 x 4.5 inches |
| XY Accuracy | +/-34μm |
| Available Print Layer Thickness | 25-150μm |
| Material Availability | 200+ |
| Chamber Heating | up to 35° C. |
| Connectivity | WiFi, Ethernet, USB |
| Device Dimensions | 334 x 357 x 544 mm 13 x 14 x 21.4 inches |
| Device Weight | 27kg 59 lbs. |
| Touch Screen Size | 7 inches |
| Warranty | 1-Year CARE Plus Plan with remote onboarding, continued support and hot swap included |

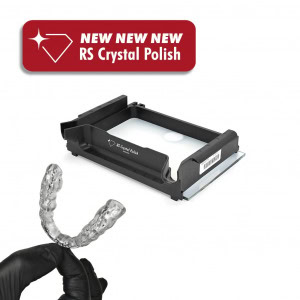

Reduce polishing time by more than 90% for transparent materials with the RS Crystal Polish Reservoir.
Includes 4x PRO 20 Glass Reservoirs and a UV light proof container to store PRO 20 reservoirs and build platform.

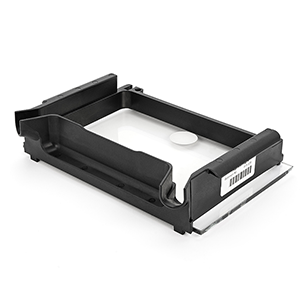

Purchase an additional PRO 20 Glass Reservoir to minimize cleaning time in between prints. Store in UV light proof environment to ensure resin longevity.
