Your Industrial Dental Parts Production

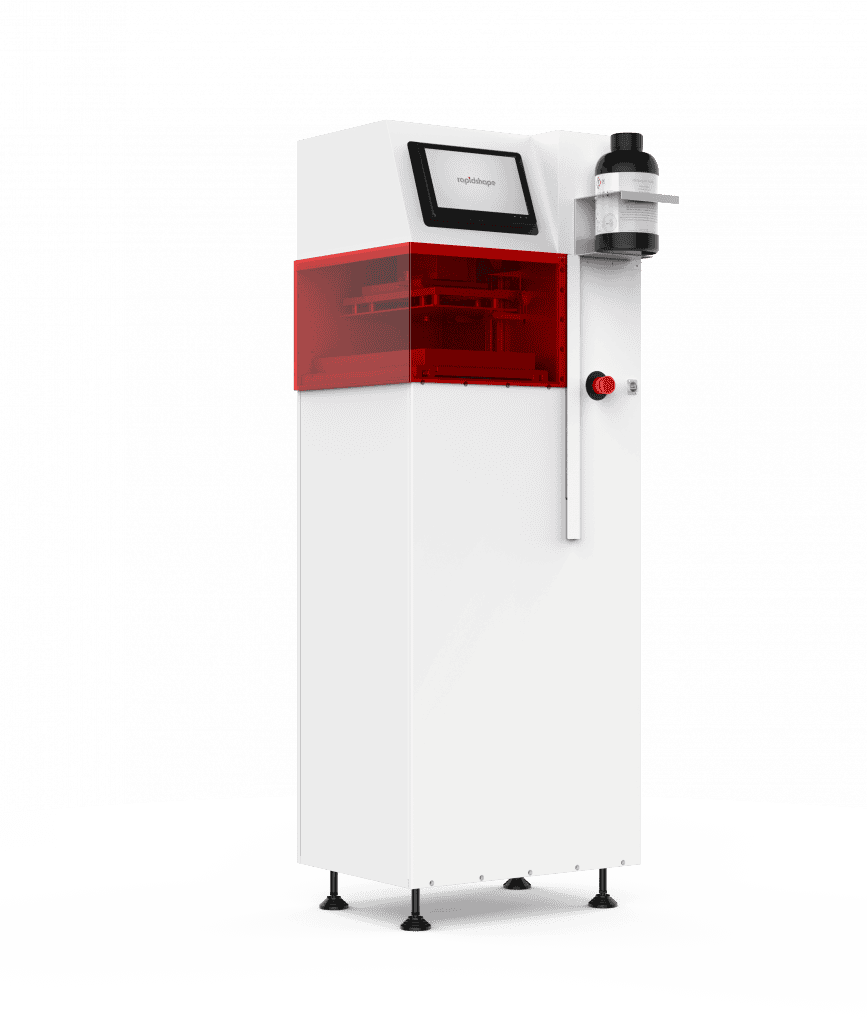

D100+ ortho with cabinet or inline
The D100+ ortho meets the requirements with a wide printing area and validated ortho-model as well as aligner precision. Long lasting reproducible quality make it a 24/7 production unit with industrial projection system and internal cooling for system components. As a stand-alone solution or in conjunction with a production line, it delivers perfect results. For true in sequence production without breaks and unnecessary down time
Up to 24 ortho models in approx. 30 minutes.
RS inline
The fully automated system for up to 4,000 dental models per day for transparent aligners. Material recycling throughout the handling and cleaning process. More than 90 percent of uncured material is recovered for 3D printing.
D100+ | D90+ | |
Technology | 405 nm DLP with Force Feedback | 405 nm DLP with Force Feedback |
Build Plate Size (W x D x H) | ~ 24 Aligner Models flat 338 x 190 x 100 mm 13 x 7.5 x 4 inches | ~ 10 Aligner Models flat 232 x 137 x 100 mm 9 x 5.3 x 4 inches |
XY accuracy | +/- 44 µm | +/- 30 µm |
Available Print Layer Thickness | 50-150μm | 50-150μm |
Touch Screen Size | 10 inch touch screen | 10 inch touch screen |
Connectitvity | WiFi, LAN, USB | WiFi, LAN, USB |
Dimension (W x D x H) | 625 x 443 x 1860 mm 24.6 x 17.4 x 62.7 inches | 650 x 1080 x 1860 mm 24.6 x 17.4 x 62.7 inches |
Rapid Shape GmbH
