360° Curing at the Touch of a Button

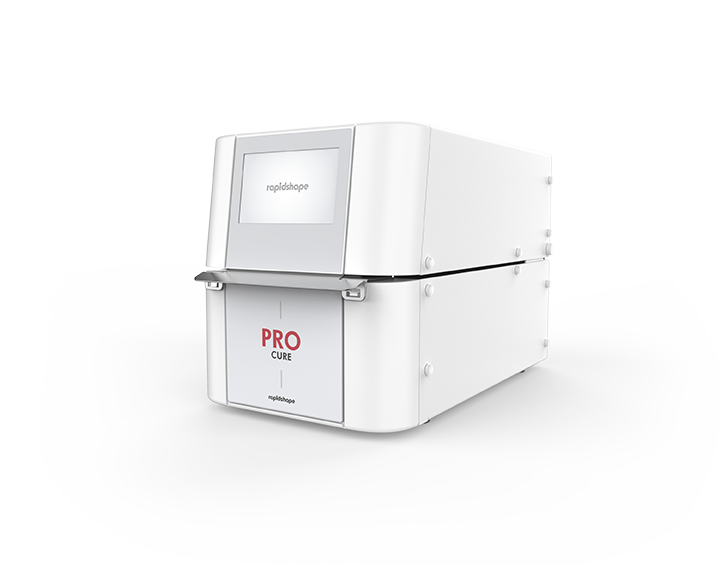

PRO cure

The RS cure automatic exposure system cures your printed parts homogeneously from all sides thanks to powerful LEDs. The integrated vacuum technology enables excellent curing of the materials. Thus, the materials can be processed validated by many material manufacturers. The process-controlled connection to your printer ensures that the correct program is always automatically selected and that the mechanical properties and biocompatibility of the end product are achieved. The pre-settings are tested and validated in close cooperation with the material partners to ensure process reliability.

Cleaning and post exposure with validated parameters to exclude the risk of incorrect processing.

Performance parameters	PRO cure
Curing Chamber Volume (L x W x H)	179 x 117 x 102 mm
Curing time	approx 6–10 minutes (depending on material)
Connections	WiFi/LAN
Dimension (W x D x H)	243 x 419 x 269 mm
Version	with vacuum

Features

The automatic exposure system for perfect curing of your printed parts.

The RS cure and RS wash are seamlessly connected to the corresponding 3D printer to ensure the easiest handling. This allows the post-processing unit to define exactly which program must be selected. The illumination system cures homogeneously from all sides in about 6-10 minutes by powerful LEDs in combination with a vacuum chamber (patents pending). The radiation covers the UVA and UVB spectrum.
