Der PRO 20 verfügt über einen großen Bauraum für ca. 30 Teile und vereint die höchste Geschwindigkeit, die für die sofortige Patientenversorgung erforderlich ist, mit hoher Präzision und einer vollständigen Materialauswahl.
Druckt bis zu 30 Ohrpassstücke in 30 Minuten
Smarte Workflows für einfache Implementierung
Zuverlässige Geräte, die langlebig sind
The PRO 20: Engineered for a Superior Dental 3D Printing Experience
We are consistently 20% faster than other DLP 3D printers, yet never compromise on precision.
Each Rapid Shape printer features a load cell that measures the forces on each layer, ensuring successful prints and reducing wait times. By automatically adjusting the Z-axis movement, our printers save up to 20% of print time, making Rapid Shape one of the the fastest DLP 3D printers on the market.
Let your 3D printer do the work – reduce polishing work by more than 90% with the RS Crystal Polish Reservoir. Achieve smooth, high-quality prints straight out of the printer, minimizing post-processing and deliver crystal clear 3D ear molds.
The Rapid Shape WASH and CURE offer top-tier versatility, ease of use, and quality. WASH and CURE offer 70+ pre-set parameters with one-click operation. WASH minimizes alcohol and resin exposure, drying parts for CURE’s vacuum chamber, which maximizes mechanical properties and biocompatibility. Experience superior 3D printing with the PRO 20 solution.

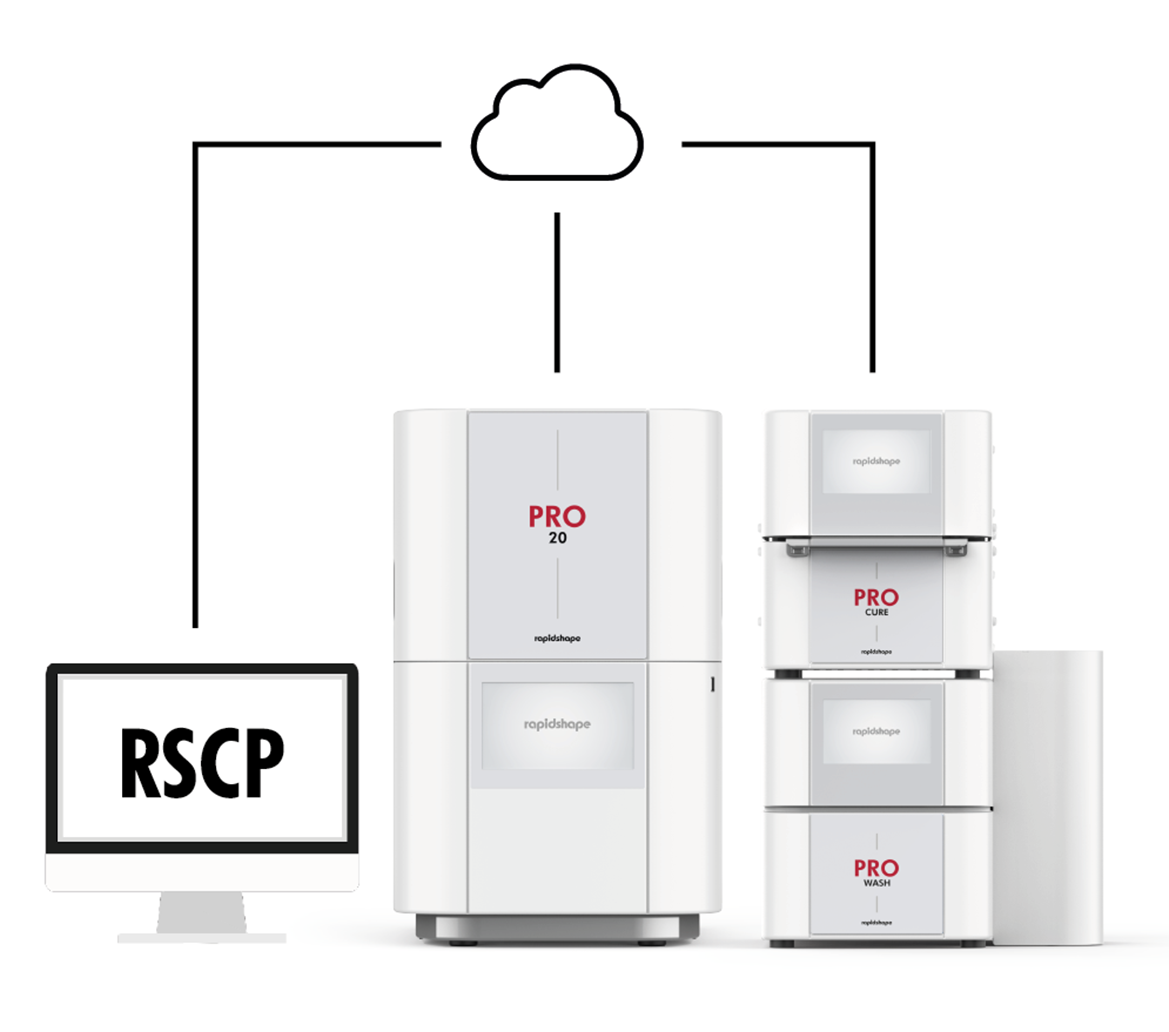

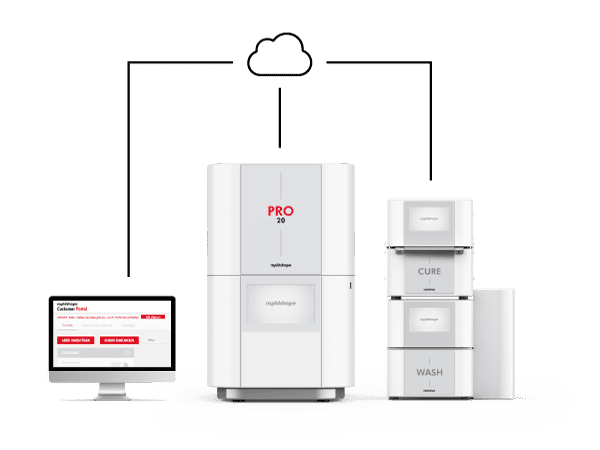

The Rapid Shape PRO 20 Audiology solution streamlines workflows with ease. Smart connectivity between printer, wash, and cure guarantees seamless, error-free transitions. Once registered in the Customer Portal, all users can view and manage devices – enabling efficient teamwork across any audiology lab.
| Technologie | Digital Light Processing (DLP) with Force Feedback |
| Wavelength | 385nm |
| Build Plate Size (W x D x H) | 133 x 75 x 115 mm 5.2 x 3 x 4.5 inches |
| XY Accuracy | +/-34μm |
| Available Print Layer Thickness | 25-150μm |
| Material Availability | 200+ |
| Chamber Heating | up to 35° C. |
| Connectivity | WiFi, Ethernet, USB |
| Device Dimensions | 334 x 357 x 544 mm 13 x 14 x 21.4 inches |
| Device Weight | 27kg 59 lbs. |
| Touch Screen Size | 7 inches |
| Warranty | 12 Months |
Reduce polishing time by more than 90% for transparent materials with the RS Crystal Polish Reservoir.

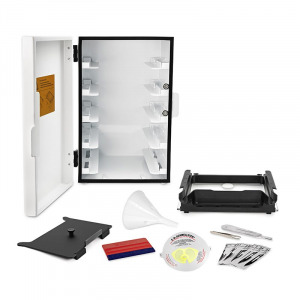

Includes 4x PRO 20 Glass Reservoirs and a UV light proof container to store PRO 20 reservoirs and build platform.
Purchase an additional PRO 20 Glass Reservoir to minimize cleaning time in between prints. Store in UV light proof environment to ensure resin longevity.
Laden Sie unsere Hörgerätebroschüre mit allen Fakten zum aktuellen Portfolio herunter
