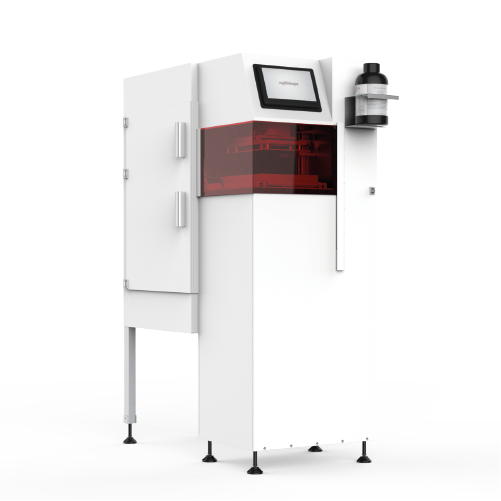

S90+ cabinet
Amazing results in a production line – the 3D printer as a single unit or for a fully-automated production line of your 3D printed parts. The S90+ is a high-performance unit that does not compromise on quality. The Automation Separation Module (ASM) is patent pending. It collects several print jobs in an integrated collection container. This means that constant attention is not required. The S90+ cabinet can work around the clock with breaks.
The increased productivity will take your Company to the next Level!
PRO wash and PRO cure
Clean and cure your parts directly after printing with the RS wash and RS cure post-processing units for an optimal and validated end result.
| Performance parameters | S90+ cabinet |
|---|---|
| Build volume (L x W x H) | 232 x 137 x 80 mm |
| Native Pixel | + / – 30µm |
| Wavelength | 385 nm |
| Resolution | 4K |
| Dimension (W x D x H) | 650 x 1080 x 1860 mm (S90+ inkl. cabinet) |
| Connections | Ethernet, USB |
| Control | 10″ touchscreen |
Features
Industrial 24/7 manufacturing of jewelry parts with the S90+ cabinet.
The Remote Access Function and the Automatic Separation Module (ASM) allows you to produce multiple print jobs one after the other. The cabinet offers even more storage space than the S90+ standalone due to a collection container into which the parts are transported after separation. This allows the printing process to continue uninterrupted. In conjunction with the Open System for different printing materials and the Automatic Resin
Refill unit the S90+ cabinet offers more flexibility in the printing process. The material identification function (RFID) allows easy access to material information of validated materials via a sensor, ensuring compliance with medical guidelines. Printing with consistently high quality and the realization of thinner support structures is made possible by our integrated and patented Force Feedback Technology. It measures the forces acting on the component for improving efficiency of the workflow and shortening delivery time.
Open System
For Continuous Use
Automatic Resin Refill Unit
Lower Cost per Unit
Our Product Line for Making High Quality Jewelry Parts
All the Information You Need – At a Glance
Download our jewelry brochure with all facts about the current portfolio
