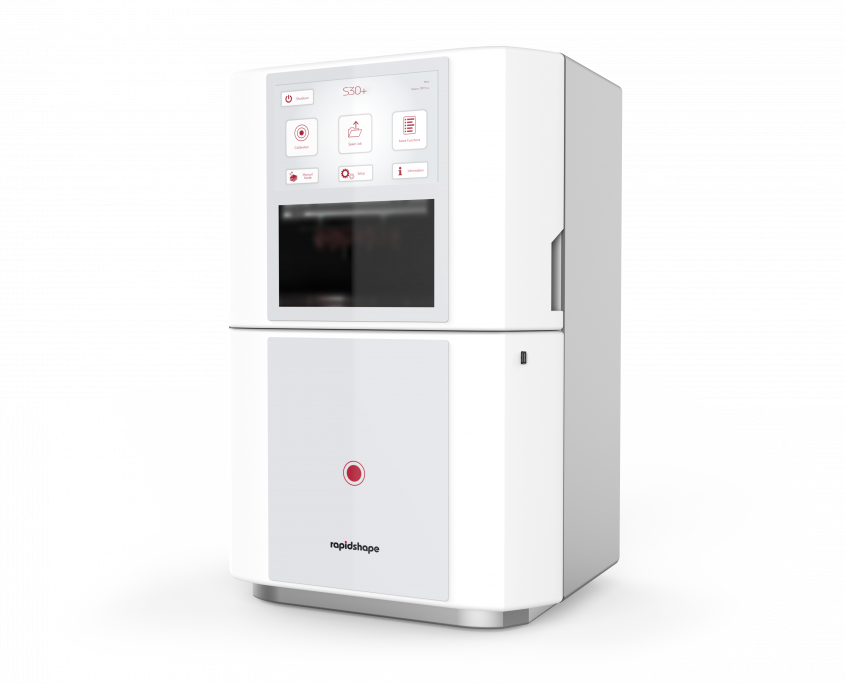

S30+
Higher efficiency for professional print results – the S30+.
Printing your jewelry master model parts becomes easy of the simple operation and its intuitive user interface. Various functions such as the ASM or force feedback system simplify the workflow without the need for professional knowledge.
High-volume printing results in consistent quality for design offices and jewelry manufacturers.
WASH and CURE
Clean and cure your parts directly after printing with the WASH and CURE postprocessing units for an optimal and validated end result.
| Performance parameters | S30+ |
|---|---|
| Build volume (W x D x H) | 133 x 75 x 155 mm 133 x 70 x 155 mm (ASM active) |
| Native pixel | + / – 34 µm |
| Wavelength | 385 nm |
| Temparature | Regulated up to 35°C |
| Resolution | Full HD |
| Dimension (W x D x H) | 480 x 410 x 690 mm |
| Connections | WLAN, USB |
| Control | 10″ touchscreen |
| Recommended for | Larger pieces such as bangles and statues with large surfaces |
Features
The automatic separation module (ASM) allows you to produce multiple print jobs in a self-determined sequence one after the other (job queues) without having to remove the build platform from the printer and separate the print jobs. Combined with the open system for different print materials and remote access, the S30+ offers more flexibility in the printing process. The material identification function (RFID) allows easy access to material information of validated materials via a sensor, ensuring faster preparation of your printing process. Printing with consistently high print quality and
realizing thinner support structures is made possible by our integrated patented force feedback technology. It measures the forces acting on the part to improve workflow efficiency and shorten delivery time. To ensure fast, high-quality printing the resin temperature control allows the S30+ to control and adjust the temperature of resins as needed. With the included knowledge center access, you can help yourself with FAQ, media and data information for questions about your 3D printer. If this is not enough, a worldwide service team is available to assist you.
User Friendly
Automatic Separation Module (ASM)
Open System
Lower Cost per Unit
Care Plan Included – Your First Year Is Free!
Every new S30+ comes with a complimentary 1-year CARE Plan, designed to keep your 3D printer at peak performance. Enjoy:
Proactive Maintenance: Annual remote validation & software updates
Priority Support:Fast response times and expert help when needed
Smart Monitoring: Live device view and resin consumption tracking
Our Product Line for Making High Quality Jewelry Parts
All the Information You Need – At a Glance
Download our jewelry brochure with all facts about the current portfolio
